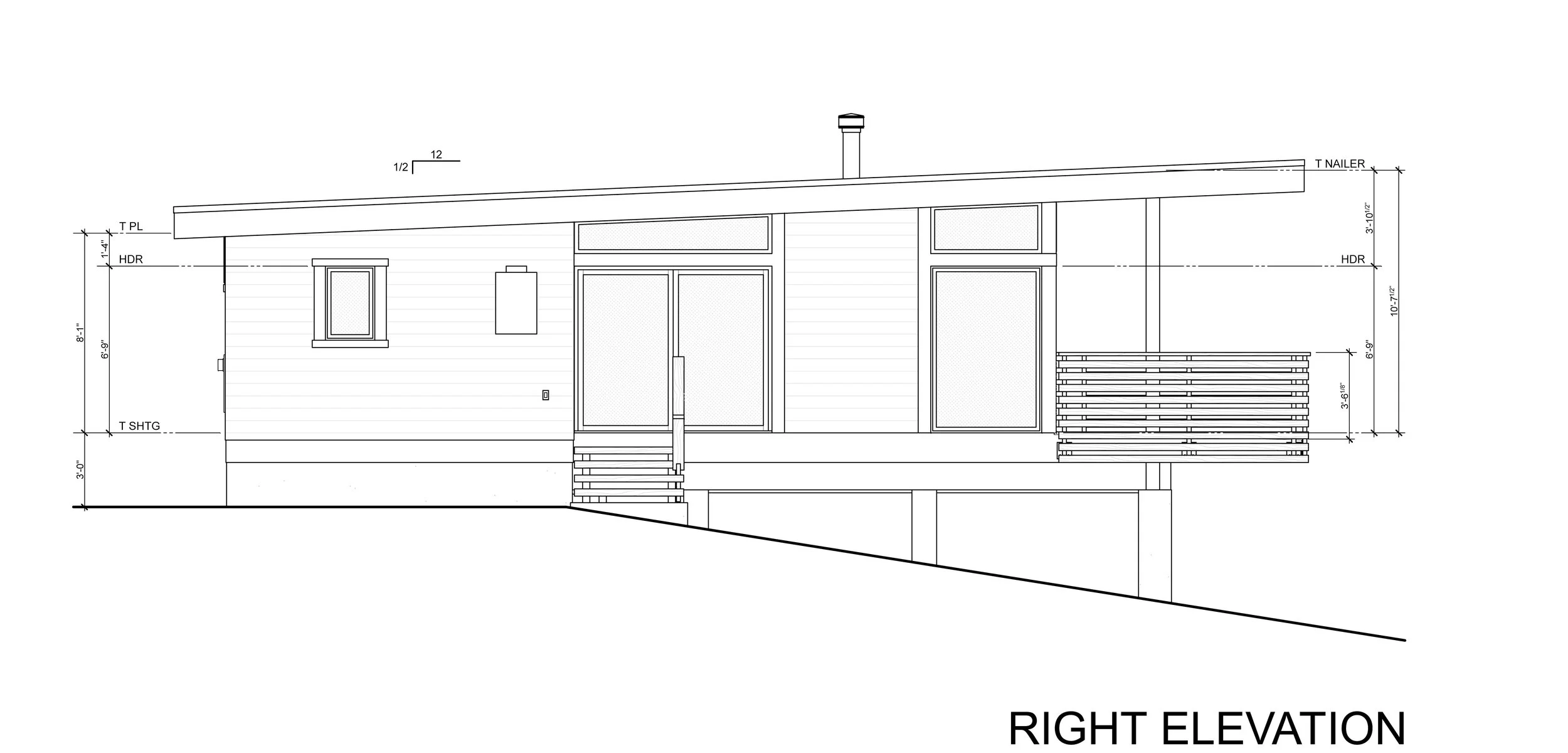

511 Rear Elevation.jpg
511 Left Elevation.jpg
511 Right Elevation.jpg
511 Front Elevation.jpg

pdf file

$1,100.00

This design is not your typical house plan you would find on generic house plan sites. Full construction documentation was finished by architect David Sanders out of Capistrano Beach, California. Where most house plan sites provide ‘basic’ drawing sets, this one is 17 pages of extremely detailed drawings, which also include ‘baseline’ engineering! It is one bedroom 511 heated sq. ft. with most of the windows and steel work designed to be ‘off the shelf’, making it easier on your contractor and easier on your wallet.

Purchase Plan

pdf file

$1,100.00

This design is not your typical house plan you would find on generic house plan sites. Full construction documentation was finished by architect David Sanders out of Capistrano Beach, California. Where most house plan sites provide ‘basic’ drawing sets, this one is 17 pages of extremely detailed drawings, which also include ‘baseline’ engineering! It is one bedroom 511 heated sq. ft. with most of the windows and steel work designed to be ‘off the shelf’, making it easier on your contractor and easier on your wallet.

Purchase Plan

-Free shipping on all prints (24”x 36”- #20 paper)

-pdf file purchases will be sent automatically

-DO NOT PURCHASE IF YOU ARE PLANNING ON BUILDING IN NEVADA

SPECS & FEATURES

Bedrooms : 1

Baths : 1

Stories: 1

Garages: 0

Dimension

Length : 43’6”

Height : 14’

Width : 19’6”

Area

Heated Sq. Ft. : 511

Raised and covered terraced area: 264 sq. ft.

Building footprint: 775 sq. ft.

Ceiling

Goes from 8’ in bedroom and gradually slopes to 9’5” in living room

Roof

Pitch : 1/2:12

Framing

2x6 for exterior walls and 2x4 for interior

Insulation

Not less than R-19 for exterior walls

Not less than R-30 for floor

Not less than R-38 for roof

Lot Characteristics

Suited For Sloping Lot

Suited For View Lot
